FrançaisIntroduction au Calcul Scientifique
ESI CS 1402 - Printemps 2010
Simulations faites avec Maple dans le chapitre II, Paragraphe III
| > | g:=(x,y)->x+y-ln(x*y); |
 |

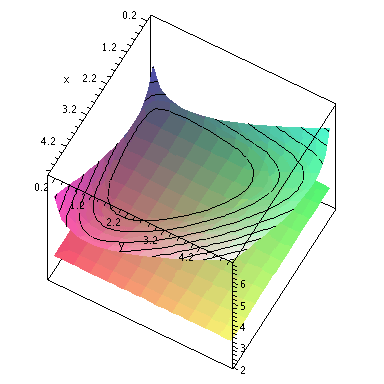

| > | plot3d({g(x,y),3},x=0.1..5,y=0.1..5,axes=BOXED); |
 |
| > | with(DEtools):
alpha:=.2; equation1 := diff(u(t), t) = u(t)*(1-v(t)); equation2 := diff(v(t), t) = -alpha*v(t)*(1-u(t)); u0:=.5; v0:=.5; |
 |
 |
 |
 |
 |

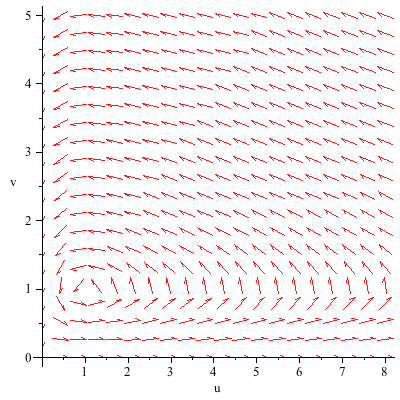

| > | DEplot({equation1, equation2}, {u(t), v(t)}, t = 0 .. 40, u = 0 .. 8, v = 0 .. 5, [[u(0) = u0, v(0) = v0]], stepsize = 0.1e-2, numpoints = 7009, animatecurves = true); |
 |

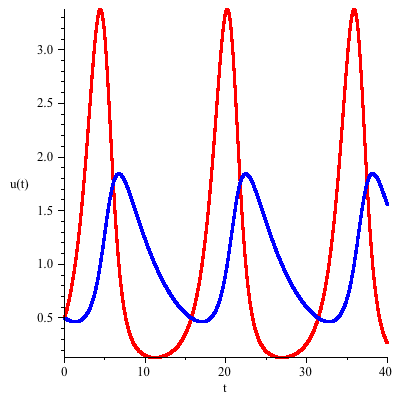

| > | Nplot:=DEplot({equation1, equation2}, {u(t), v(t)}, t = 0 .. 40, [[u(0) = u0, v(0) = v0]], scene=[t,u(t)], stepsize = 0.1e-2, linecolor=red):
Pplot:=DEplot({equation1, equation2}, {u(t), v(t)}, t = 0 .. 40, [[u(0) = u0, v(0) = v0]], scene=[t,v(t)], stepsize = 0.1e-2, linecolor=blue): plots[display](Nplot,Pplot); |
 |
